Soldering and desoldering are fundamental skills in electronics repair and assembly, and mastering these techniques with a rework station can significantly improve the quality and efficiency of your work. Whether you’re working on surface-mount devices (SMDs) or through-hole components, following best practices will help you achieve reliable and clean connections while minimizing the risk of damage to the components or the PCB. Here’s a guide to the best practices for soldering and desoldering using a rework station.
1. Choose the Right Rework Station and Tools
- Why It Matters: Using the appropriate rework station and tools for your specific task ensures precision and efficiency, reducing the risk of errors.

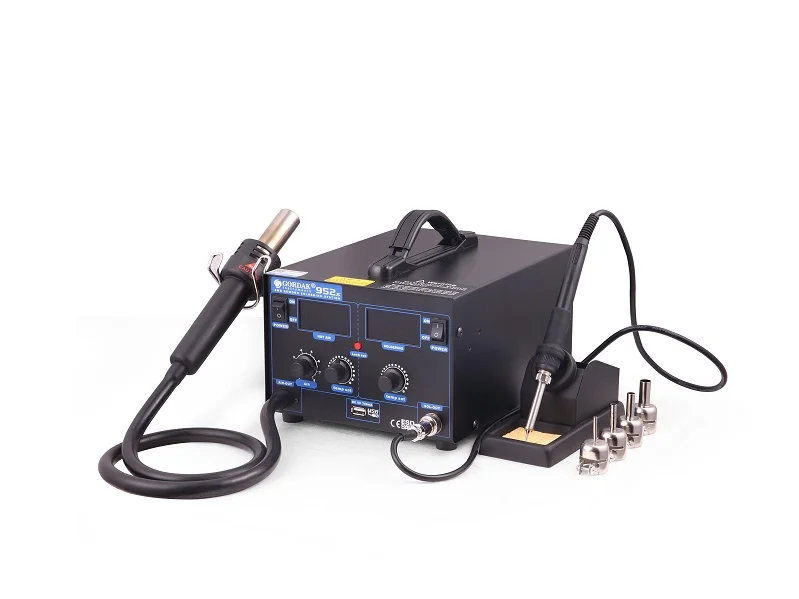

- How to Implement: Select a rework station that offers adjustable temperature and airflow control. For soldering, choose a fine-tipped soldering iron for precision work, and for desoldering, use a dedicated hot air gun or desoldering pump. Ensure you have the correct soldering tips, tweezers, and other accessories for the components you’re working on.
2. Set the Correct Temperature and Airflow
- Why It Matters: Applying the right amount of heat and airflow is crucial for preventing component damage and ensuring strong solder joints.
- How to Implement: Refer to the component’s datasheet to determine the optimal temperature range. Typically, a temperature of 300°C to 350°C is suitable for most soldering tasks. Adjust the airflow to be strong enough to melt the solder but gentle enough to avoid displacing small components. It’s better to start at a lower temperature and increase gradually if needed.
3. Preheat the PCB
- Why It Matters: Preheating the PCB before soldering or desoldering helps to evenly distribute heat, reducing the risk of thermal shock and warping.
- How to Implement: Use a preheating plate or the preheating function on your rework station to warm the PCB to around 100°C-150°C. This step is particularly important when working with multilayer boards or components that are sensitive to temperature changes.
4. Use Flux for Clean and Strong Joints
- Why It Matters: Flux helps remove oxidation and improves the flow of solder, resulting in clean and reliable joints.
- How to Implement: Apply a small amount of flux to the area before soldering or desoldering. Flux pens are convenient for precise application. After completing the work, clean the area with isopropyl alcohol to remove any flux residue that could cause corrosion or electrical shorts.
5. Maintain a Clean Soldering Tip
- Why It Matters: A clean soldering tip ensures efficient heat transfer and prevents contamination of the solder joint.
- How to Implement: Regularly clean the soldering tip using a damp sponge or brass wire cleaner. Tin the tip with fresh solder before and after each use to prevent oxidation and maintain its condition.
6. Soldering Best Practices
- Why It Matters: Proper soldering techniques ensure that connections are strong, reliable, and free of defects like cold solder joints or bridging.
- How to Implement:
- Position the soldering iron tip on the joint for a few seconds to heat both the pad and the component lead.
- Feed solder into the joint, allowing it to flow smoothly over the connection.
- Remove the soldering iron and allow the joint to cool naturally without disturbing it.
- Inspect the joint for a shiny, concave shape that indicates a good connection.
7. Desoldering Best Practices
- Why It Matters: Effective desoldering allows you to remove components without damaging the PCB or the component, making repairs and modifications easier.
- How to Implement:
- Apply flux to the solder joint to facilitate easier removal.
- Use a desoldering pump or braid to remove the solder from the joint.
- For SMD components, use the hot air gun to gently heat the solder until it melts, then lift the component with tweezers.
- Clean up any remaining solder with a desoldering braid or a solder sucker.
8. Avoid Overheating
- Why It Matters: Overheating components or the PCB can cause irreversible damage, such as lifted pads, burnt components, or damaged traces.
- How to Implement: Monitor the time you apply heat to a joint, typically limiting it to a few seconds. If the solder doesn’t melt within that time, consider increasing the temperature slightly or using more flux. Always allow components and the board to cool between heat applications.
9. Inspect and Test Your Work
- Why It Matters: Inspecting and testing your work ensures that all connections are solid and that no unintended damage has occurred during the process.
- How to Implement: Use a magnifying glass or microscope to inspect solder joints for any defects, such as cold joints or solder bridges. Perform electrical tests using a multimeter to check for continuity and proper functionality before moving on to the next task.
10. Practice Proper ESD Protection
- Why It Matters: Electrostatic discharge (ESD) can damage sensitive electronic components during soldering and desoldering.
- How to Implement: Wear an ESD wrist strap and ensure your workstation is equipped with ESD mats. Keep the components and PCB grounded while working to prevent static buildup.
Conclusion
Following these best practices for soldering and desoldering using a rework station will help you achieve high-quality results in your electronics projects. By using the right tools, setting the correct parameters, and maintaining a disciplined approach, you can ensure strong, reliable connections while minimizing the risk of damage to components and PCBs.
