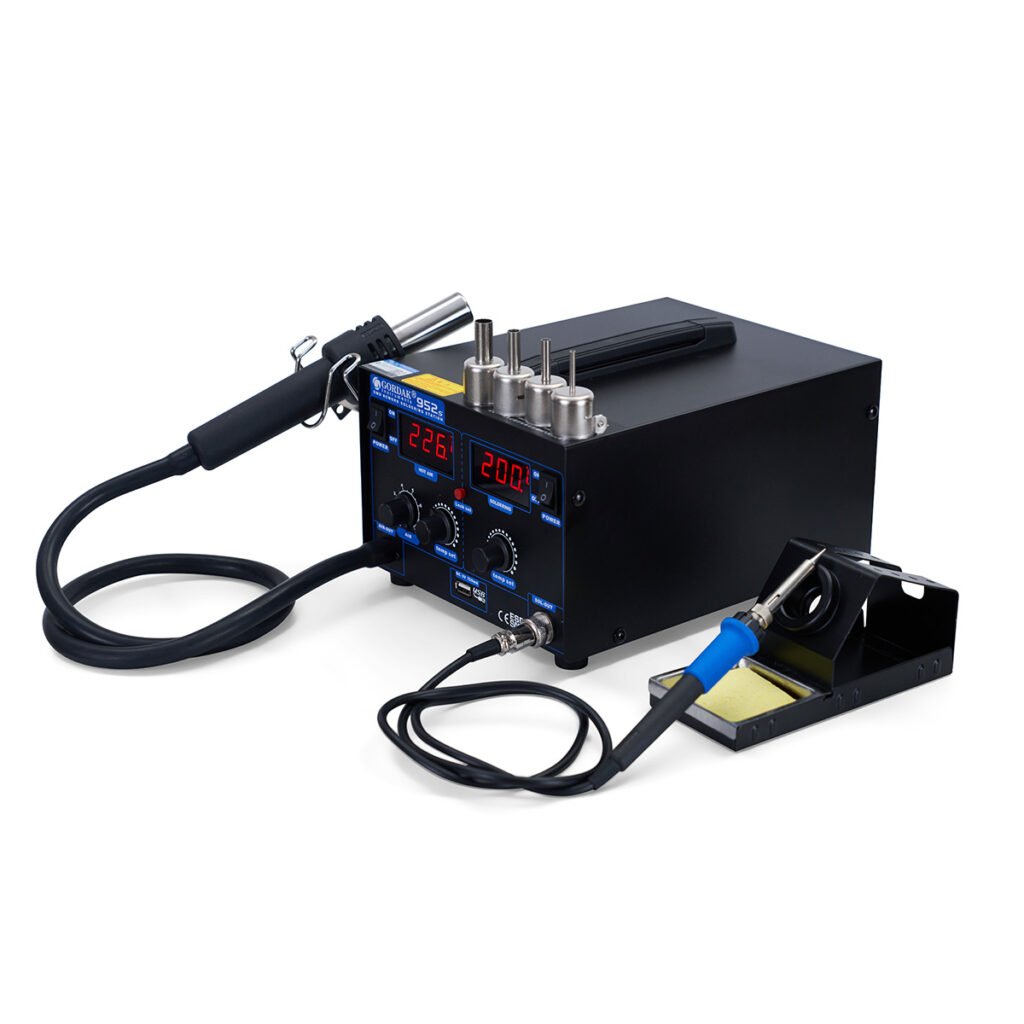

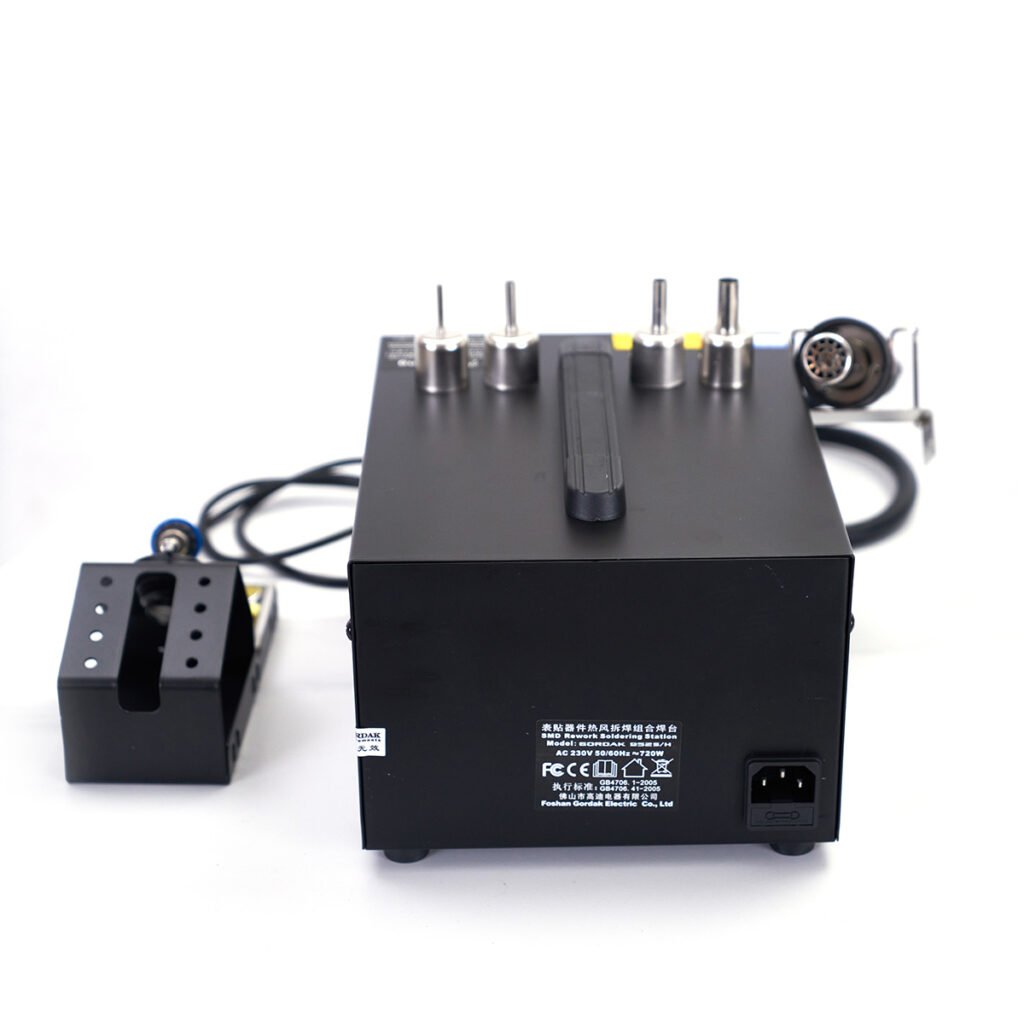

GORDAK 952S Multi Function Rework Station

The GORDAK 952S Multi Function Rework Station is a professional-grade solution for electronic assembly, repair, and rework. Designed with an anti-static hot air rework station and a high-performance soldering station, it delivers precise, reliable, and efficient performance for a wide range of soldering applications.

Equipped with intelligent PID temperature control, stepless airflow adjustment, and high-power heating elements, the station ensures rapid heat-up, stable temperature regulation, and uniform airflow. The hot air handle features smart sleep-sensing functionality, entering energy-saving mode automatically when not in use, while the soldering iron incorporates a long-life imported A1321 heating element for fast and efficient desoldering.

The GORDAK 952S also includes safety and convenience features such as a temperature control knob with lock function, fault self-diagnosis with error codes, and an intelligent automatic cooling system that continues airflow until temperatures drop below 50℃ before shutting down. Additionally, the unit offers a USB 5 V / 700 mA output for charging compatible devices, making it a versatile and practical choice for professional electronics technicians.

Features

Anti-static design with hot air rework station – The soldering station features a large LED dual display and a high-power hot air heating element for rapid heating.
Intelligent PID temperature control – Equipped with a microcomputer sensor-closed intelligent constant temperature control system. The air pump supports stepless speed adjustment with strong airflow, suitable for various soldering processes.
Smart sleep-sensing hot air handle – When not in use, placing the hot air handle on the stand or with the nozzle facing upward automatically activates energy-saving sleep mode.
Durable high-performance heating element – The hot air gun uses a nickel-chromium wire heating element with spiral design, ensuring uniform heating. It is high-temperature resistant, highly durable, and has a much longer lifespan than ordinary heating wires.
Long-life soldering station heater – The soldering station uses a long-life imported A1321 heating element with high power and extended lifespan.
Temperature control knob with lock function – Prevents unauthorized changes to temperature settings.
Fault self-diagnosis function – The machine can detect faults and display corresponding error codes for easy and quick troubleshooting.
USB charging output – The main unit includes a 5 V, 700 mA USB port to charge compatible USB devices.

Specifications

Model	GORDAK 952S
Hot Air Station
Rated Voltage	230 V AC, 50/60 Hz
Max Power	605 W
Pump Type	Membranous
Air Flow	120 L/min (Max)
Pump Power	45 W
Temperature Range	100℃ – 500℃
Noise	< 45 dB
Soldering Station
Max Power	60 W
Output Voltage	24 V AC
Temperature Range	200℃ – 480℃
Ground Potential	< 2 mV
Ground Resistance	< 200 mΩ
Heater	A1321 Chinese Ceramic
Packing	6 pcs/ctn
Size	59 × 32.5 × 54 cm
Gross Weight	28.45 kg/ctn
